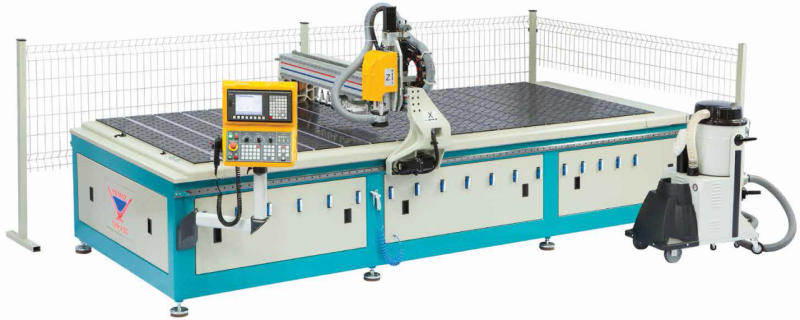

CPM 4150 - Composite Panel Processing Machine

Designed to process Aluminium composite panel, Alucobond and solid panel

• Materials processed in machine: Aluminum composite panel, aluminum panel, plexy panel etc.
• CNC automation system with 3 axis of movement
• Application of special cutting processes with YILMAZCAM software = Easy to operate
• 2 pcs of Pneumatic reference support systems.( Second one is for the processing of the panels bigger than 4100 mm)
• Magazine unit with capacity of 6 sets of tool on the bridge= Minimum tool change time
• Vacuum manifold with a flow rate of 350 m3/ h to remove chips
• Superior ‘gantry’ design gives rigidity = Maximum accuracy
• Specially designed vacuum table for processing the small pieces = no skimming
• Air flow system to move the big size of the plate on the table easily = means more efficiency
• AUTOMATIC Tool Measurement System to reduce the tool setup time = Minimum set-up time
• Vortex chip removal system. Clean all the chips on the work plate= chip free environment
• Multi language support for control unit
• PLC controlled tool cooling system
• Superior hold-down vacuum system comes from 7.5 KW vacuum pump
• Control panel with color display for CNC control
• Handle for setup and manual motion control
• Easy program transfer with USB memory stick
• Creating programs by using display
• Technical support with remote access
• Automatic linear bearing and pinion rack lubrication system = simple maintenance
• 1 set of tool mounting apparatus and wrench
• Optional tools, tool holders and clips

	7.5 kW - 400 m3/h
	400 V 3P-50~60 Hz
	6 Bar
	X:4100 mm, Y:1625 mm, Z:150 mm
	4780 X 2300 X 1800 mm
	1925 kg
	1720 kg
