IMT-TM3-65E Aluminium CNC Machine Center (For Long Profile)

Call for Price

MULTI-FUNCTION MOVING COLUMN MACHINING CENTER

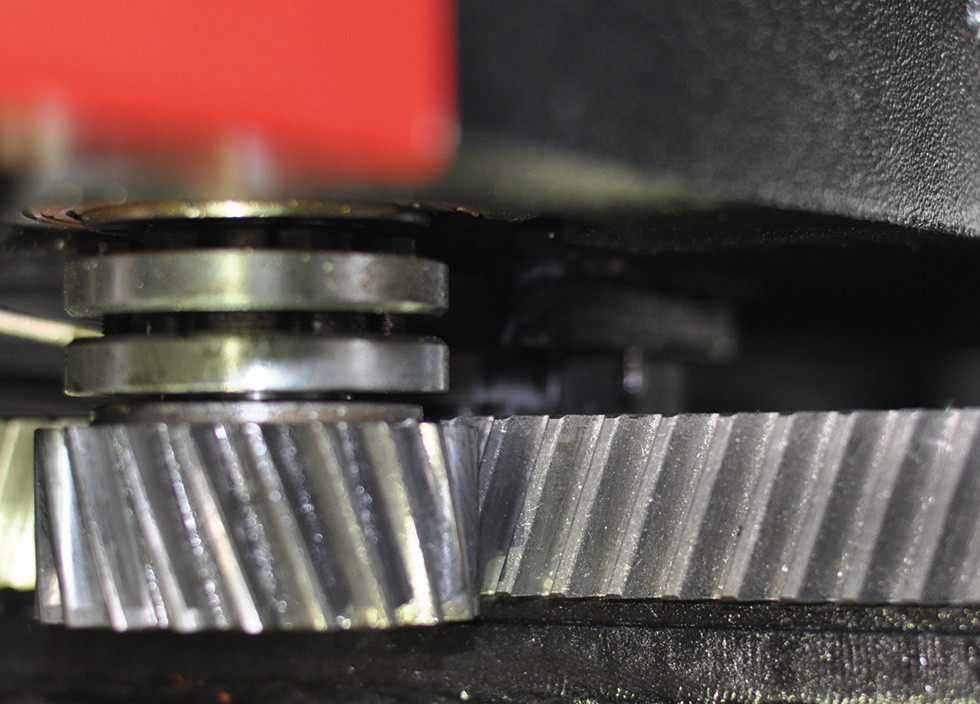

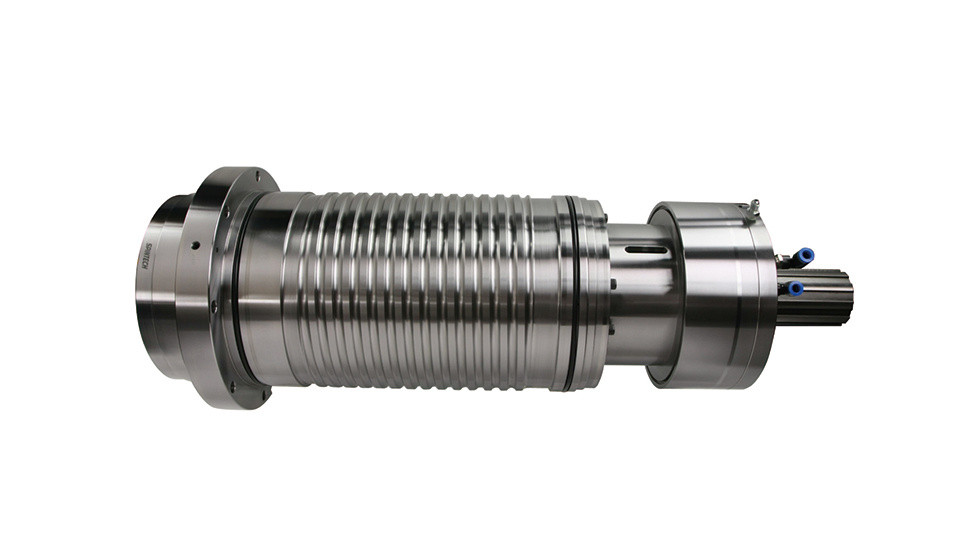

                                Direct-drive Spindle                                                               Helical rack (ground class)

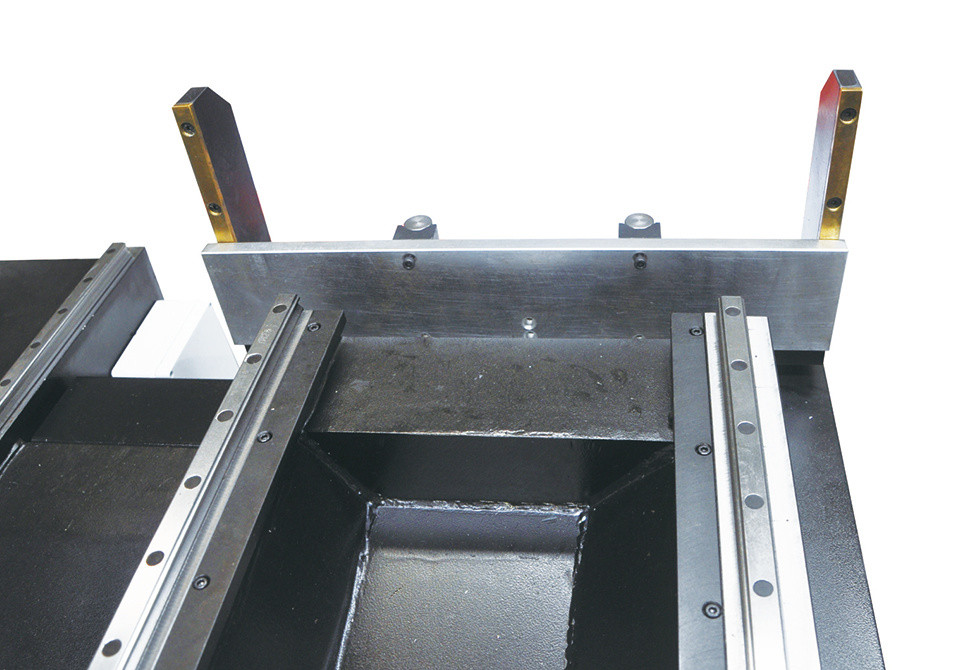

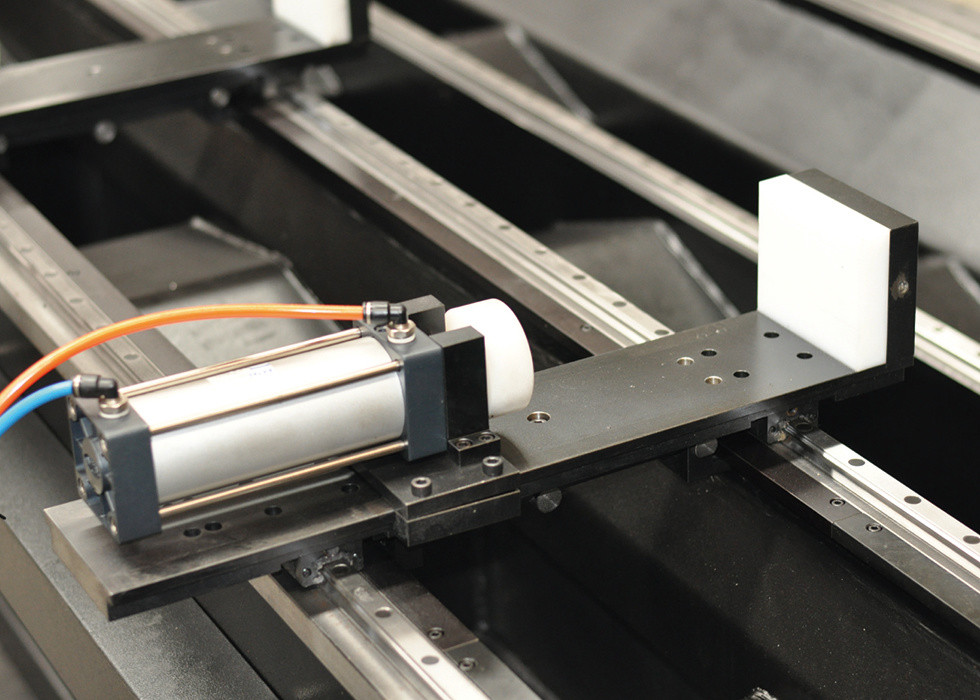

                               Reference Point                                                                              Air Clamping fixture

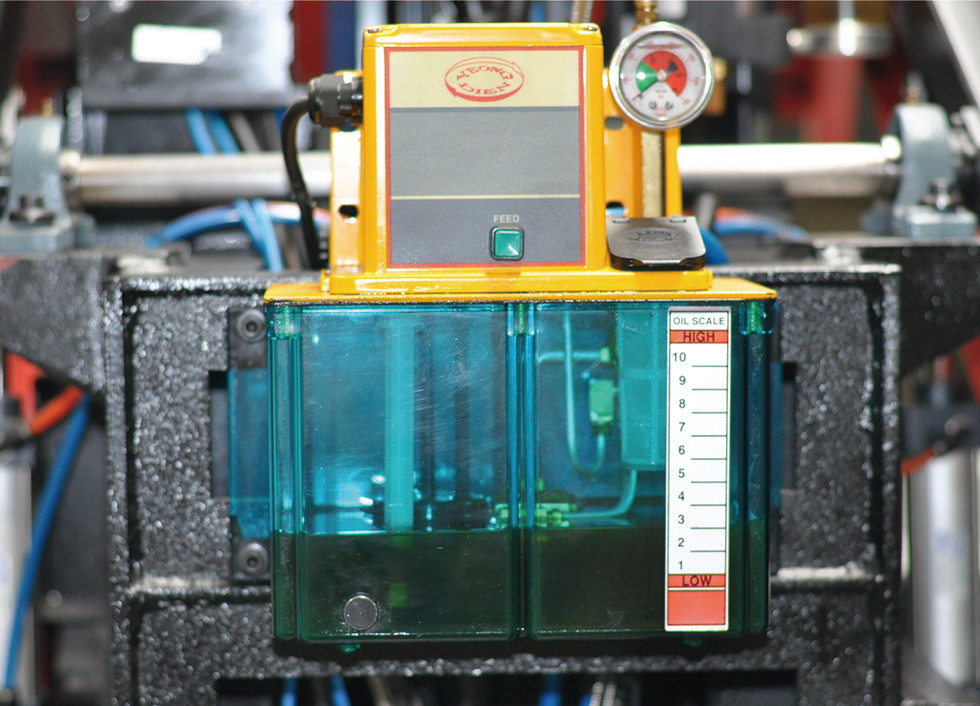

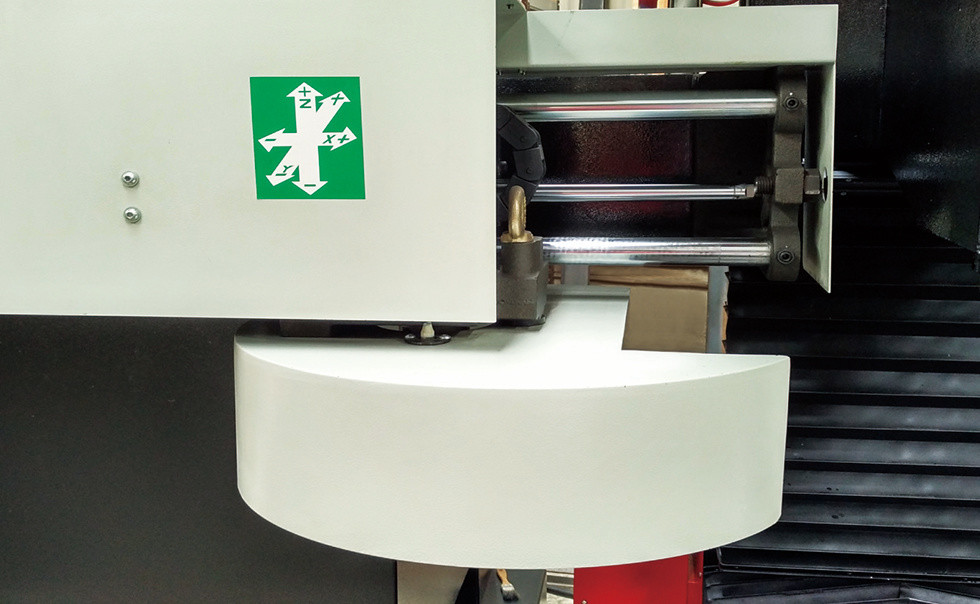

                      Armless type tool magazine                                                       Automatic lubrication system



                         Oil Mist device





Technical Spefication :

MODEL   UNIT IMT-TM3-65E
Controller NC controller   SYNTEC
  Spindle motor-cont/30min KW 3.7/5.5
  Axis feed motor-X/Y/Z KW 2 / 1 / 2B
Spindle Taper   BT 40
Type   Direct driven
Speed RPM 10000(OP:12000)
Travel X MM 6500 (OP:2500~8000)
Y/Z MM 450/410
Spindle nose to clamp surface MM 150~560
Feed rate Rapid feed rate-X/Y/Z M/min 58/20/20
Cuting feedrate by table M/min 8
Accuracy X Rack MM ±0.05
Y/Z Ballscrew MM ±0.02
Repeatability MM X : ±0.03(±500) Y/Z :±0.015
Air clamping Width MM 120
Pneumatic cylinder MM ø63
Load weight KG 30 (1 Pic)
Amount Pic 9
Tools Magazine capaclty T 12
Magazine type   Armless
Max. tool length/diameter MM 200/80
Max. tool weight KG 6 (Full Max 60)
  Coolant tank capacity L 10
Min./Max. air pressure kg/c㎡ 6
Power requirement KVA 20
